EXPLOSION ANALYSIS



NATURAL GAS EXPLOSION pressure plot vel plot

_____Figure 1__________________Figure 2______________________Figure 3

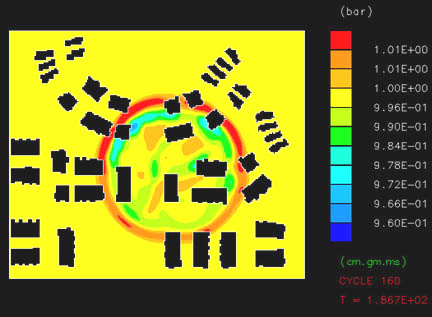

Natural gas leaked from piping and an explosion was initiated by the furnace (Figure 1). Severe over pressure is shown in the computer model (Figures 2 and 3). Figure 4 shows a model of an explosion that damaged several buildings.


Figure 4


GAS LINE RUPTURE CHEMICAL REACTOR EXPLOSION

___________Figure 5_____________________Figure 6________________

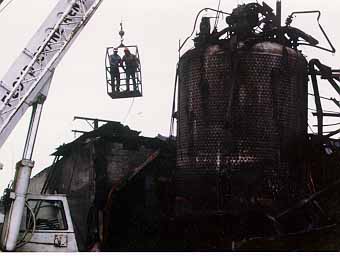

An explosion occurred in a home as a consequence of a natural gas leak. The high pressure gas line has ruptured, resulting in a tall fire plume (Figure 5). Several nearby buildings were badly damaged. Investigators examine a chemical reactor that was involved in an explosion at a large factory complex (Figure 6).
